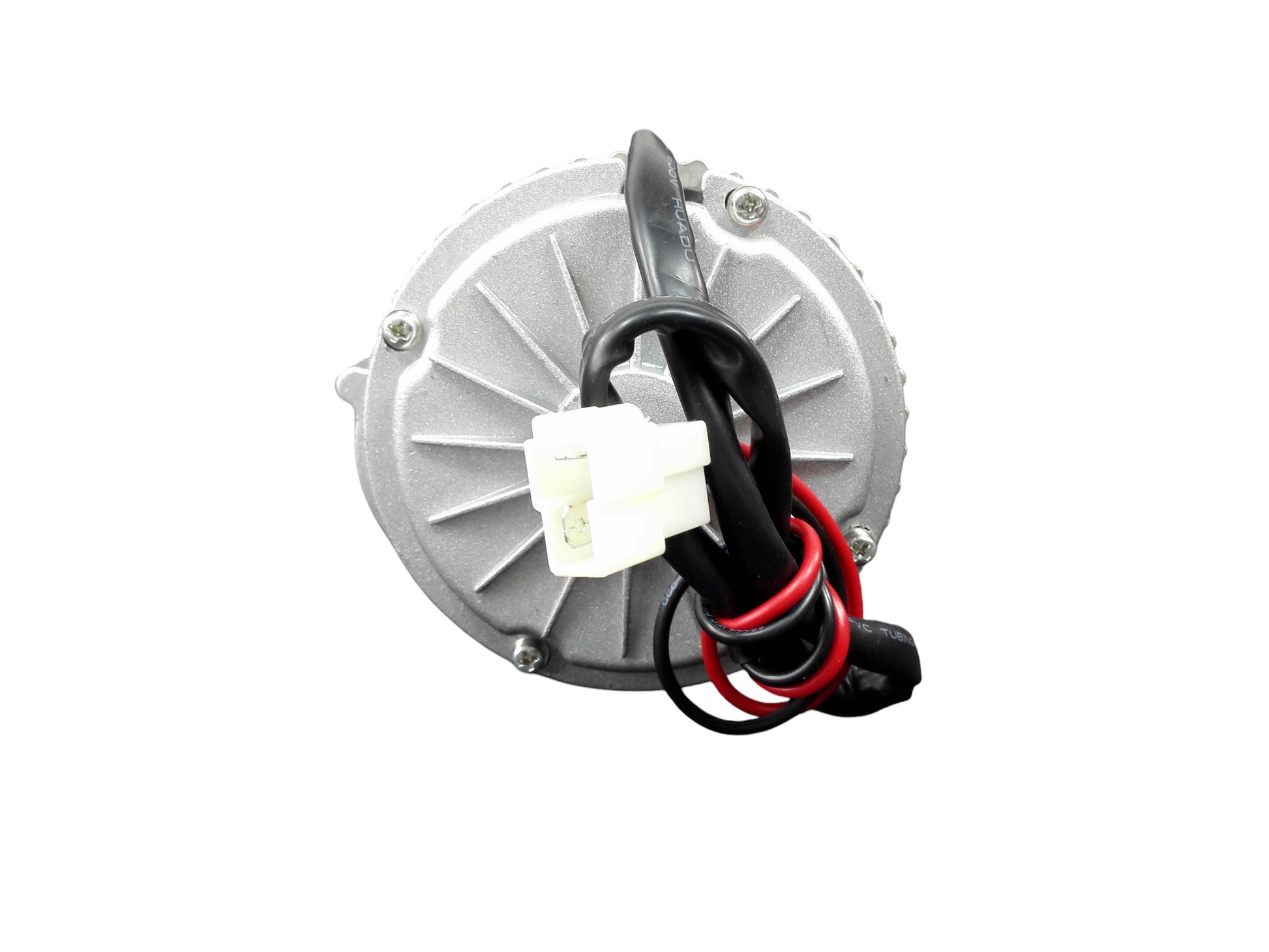

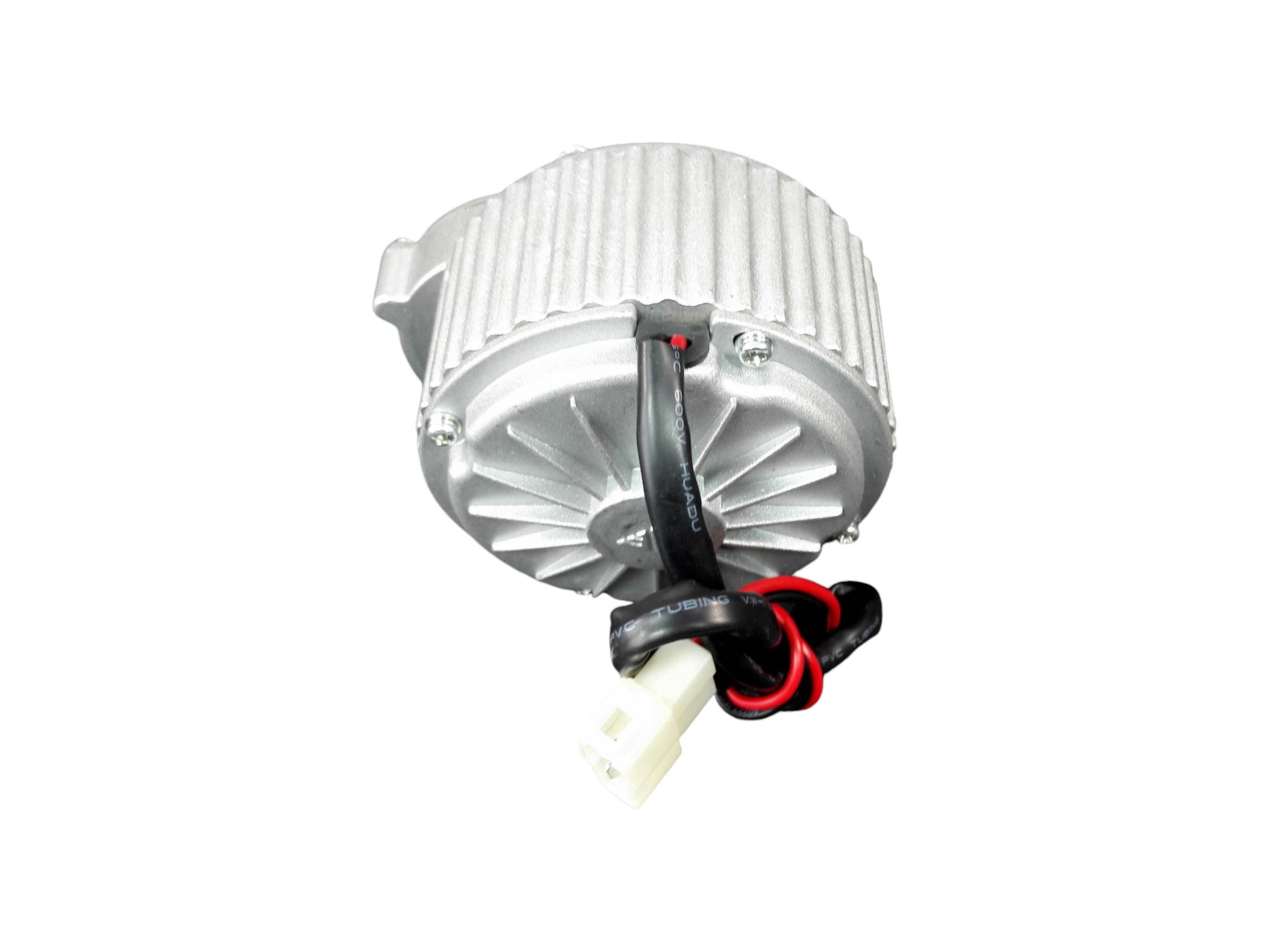

DC gearbox generator 450W/24VDC
€159,00 EUR
€159,00 EUR
Sale
Sold out
Tax included.
Shipping calculated at checkout.
In stock
SKU:GGG24450
Couldn't load pickup availability
- Höchste Präzession
- Unterstützung vom Fachmann
- 14 Tage Rückgaberecht
- Schnelle Lieferung
Secure checkout with
About the Product

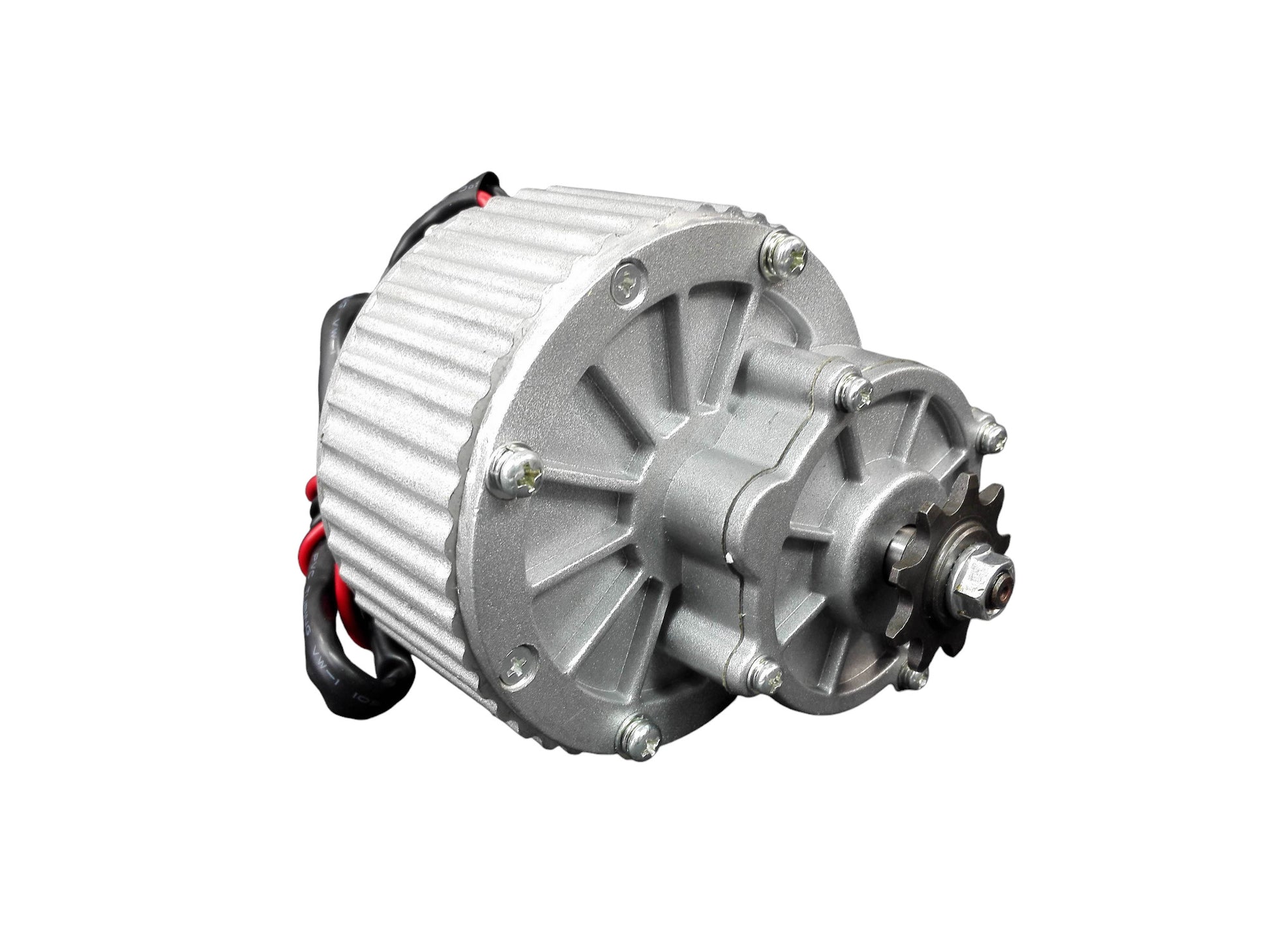

This direct current generator is directly coupled with a spur gear. The gearbox is weatherproof encapsulated and maintenance-free. The motor is secured with 3 screws. A motor holder made of 4mm steel sheet can be supplied as an option.
The charging machine for 12/24V batteries.
| Maximum power | 450W |
| Voltage | 24VDC |
| Current | 19A |
| Shaft rotational speed | 340 rpm (gearbox) |
| Weight | 2.1 kg |
| Dimensions | D 110mm, L 90mm |

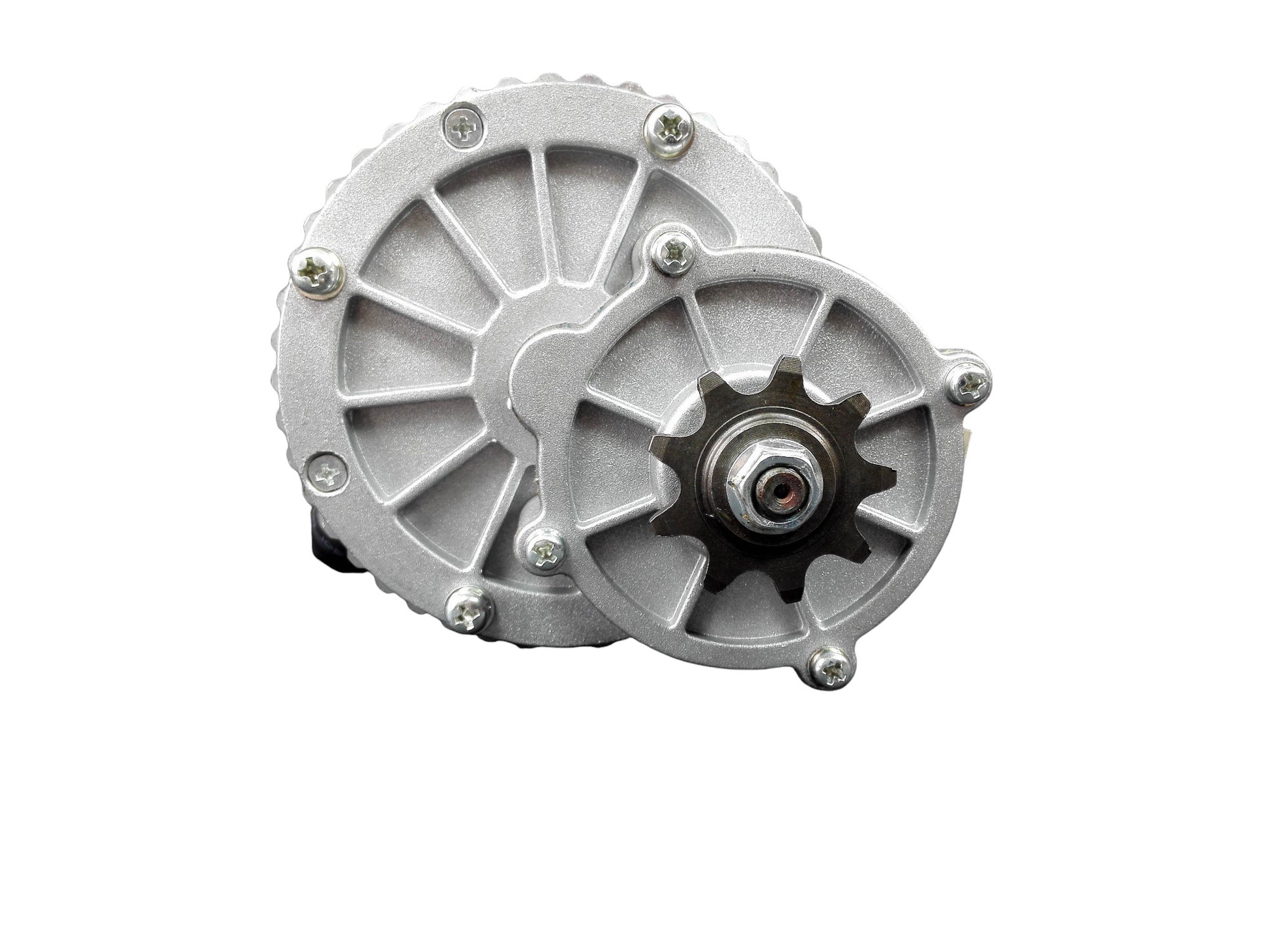

| Pinion diameter | 40 mm/9 teeth |
The shaft has a diameter of 11 mm, length 20 mm, and M8 thread.
Additionally, a key (B=4mm, L=8mm) is included.
The use of a translation results in an increased starting torque! The starting torque is approximately 0.56 Nm.
Technical changes reserved.
